Questionarry to correctly determine which hose reel is required
Technically advanced solutions for demanding applications
The hydraulic hose reels in the Kompact series are known for their robust construction, high operational reliability and long-lasting quality in industrial use.
Over 25 years of experience in development, manufacturing and sales have gone into every detail. Practical requirements from a wide range of industries and customer-specific solutions have continuously shaped and optimised the design.
The hose reels are universally applicable and have proven themselves in, among other things:
- Forklift trucks (front and side loaders)
- Crane vehicles and lifting cranes
- Machinery and plant construction
- Special vehicles
Construction and performance
The modular system allows precise adaptation to different technical requirements and installation situations. At the same time, the design remains compact, stable and low-maintenance.
Key technical data:
- Continuous operation up to 310 bar (depending on the hose used)
- Suitable for single, double and triple hoses
- Nominal widths 8, 10 and 13
- Hose lengths up to approx. 35 metres

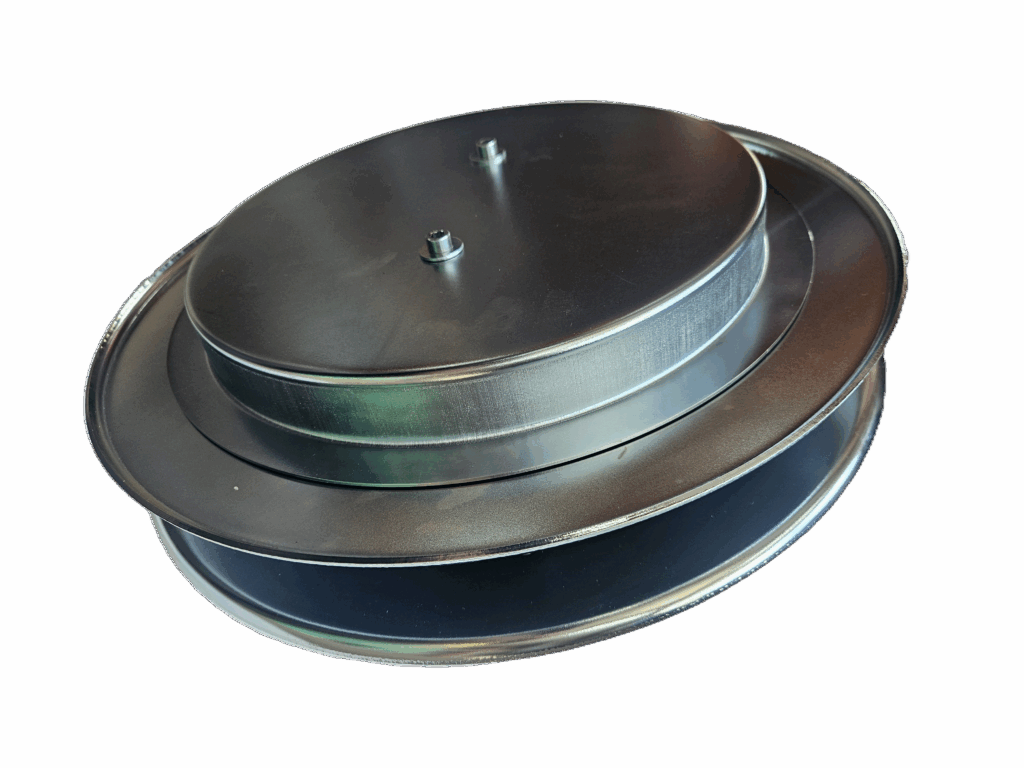

A specially developed hub-drum plate construction ensures an exceptionally high hose capacity with a comparatively small drum diameter. This means that powerful solutions can be implemented even in limited installation spaces.
Even the smallest drum with an outer diameter of 210 mm can hold 1.5 metres of hose with an outer diameter of 16 mm.
Overview of design advantages
The Kompact series has been specifically designed for continuous industrial use. This results in significant design advantages:
- Low overall width combined with high hose capacity
- Almost maintenance-free due to robust and durable construction
- Long service life even under demanding operating conditions
- High stability thanks to solid construction and industrial design
The combination of compact design, stability and durable components ensures safe and trouble-free operation in demanding applications.
Versions and variants
The Kompact series is available in various configurations:
- Single, double, triple and quadruple reels
- Optionally available as a combined electro-hydraulic version with additional cable feed-through
- Available in right or left-hand pull-out direction
Thanks to universal mounting plates or angles, the hose reels are interchangeable with most commercially available brands and are suitable for new applications as well as retrofitting and replacement projects.
Detailed information on the individual versions can be found on the corresponding product pages.
Surface and corrosion protection
As standard, the hose reels are coated with a durable black powder coating. This provides reliable protection against mechanical stress and environmental influences.
For particularly corrosive operating conditions, galvanisation is available as an option, which provides even better corrosion protection and thus an even longer service life under such conditions.
Return system
The self-returning mechanism is operated by an integrated safety return spring, which is designed for a long service life.
For safety reasons, the spring must not be removed from the cassette if it is damaged or malfunctioning. Further technical information, such as changing the seals, changing the direction of rotation, etc., can be found in the operating and repair instructions.
Accessoires
A comprehensive range of accessories is available to ensure technically clean integration into your application, including:
- Swivel joints as rotatable connections
- Roller fairleads in various designs for controlled hose guidance
- Hose stoppers as mechanical end stops
- Crocodiles as bend protection for the hose
- Deflection pulleys for hose return
Detailed descriptions and technical details can be found on the respective accessory pages.
Individual design – systematic and tailored to your needs
Since the installation situation, hose length and operating pressure vary depending on the project, the design is based on your specific requirements.
Our technical questionnaire allows you to record all relevant parameters in a structured and complete manner. On this basis, you will receive a precisely tailored hose reel – complete with hydraulic hose and matching fittings on request.
This ensures that your hydraulic hose reel is optimally tailored to your application.
